Product Details:
Payment & Shipping Terms:
|
| High Light: | Square LED Panel Light,led recessed panel lights |
||
|---|---|---|---|

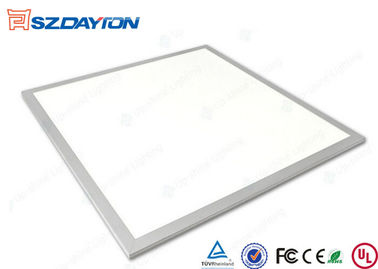

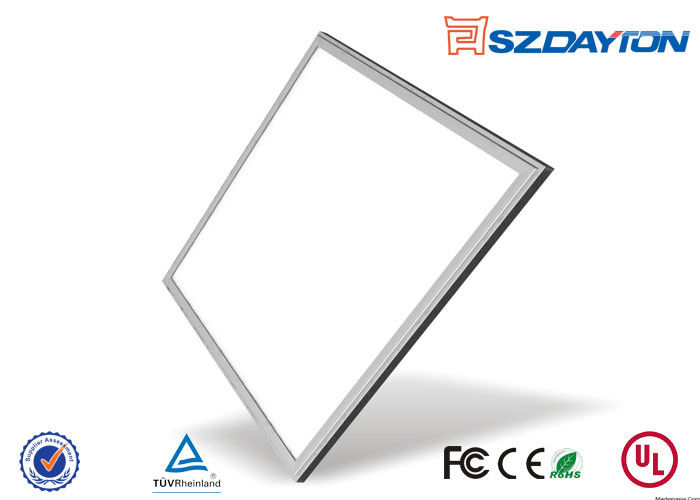

1ft ×1ft LED Ceiling Panel Light 18W Silvery White Golden Frame
Quick Detail:
1) Voltage : AC85-265V
2) Power:18W
3) Size : 300*300*12mm
4) Work Frequency:50-60Hz
5) Lumen flux: 1300±50lm
6) CCT:2700K-3300K 4000K-4500K 5500K-7000K
7) Beam angle : 155°
8) Certificate : CE , RoHS , TUV , UL
9) CRI: ≥75
10) Lifespan : 50000hrs
11) Warranty : 3 years
12) Main material : Aluminum+PMMA
13) Power Factor: ≥ 0.95
Description:
1. Ultra-thin profile with 12mm
2. Diffused lens gives an evenly illuminated appearance
3. Professional thermal design, its life span up to 50,000hours
4. Special processing for surface aluminum frame with rounded corner, make sure safety
5. High brightness, the maximum light output can reach 85lm/w
6. Low maintenance & Easy installation
7. Elegant and superior appearance
8. Contains no lead, glass or mercury -RoHS compliant
9. Working temperature:-20℃-40℃ ,IP44
10. Triac dimmable , 0-10V dimmable , DALI dimmable
11. 3 years warranty
Technical Specifications:
| Housing Material: aluminum 6063 +PMMA | Dimension: Φ300mm*300mm*11mm |
| Power Supply: 18 W | CRI: > 75Ra (white warm white) |
| LED Quantity: 100 pcs (3014 SMD LED) | Power Factor: ≥ 0.96 |
| Efficacy: 110LM/W | Color Temperature: 2800K-7000K, or customized |
| Input Voltage: AC85-265V | Environment Temperature: -20 ℃~ +40℃ |
| Life Span: 50000hours | Net Weight : 1300g/pcs |
| Work Frequency: 50-60Hz | Gross Weight /Size: 308*308*15mm 1330g/pcs |
| Installation: embedded ceiling | carton/Weight(pcs/kg): 312*312*68mm 4pcs/7.8kg |
| Beam angle: 155° | Certification: CE, RoHs |
| Luminous Flux: 730-850 LM | warranty: 3 years |
Competitive Advantage:
1) Leading power source design and long lifespan.
2) NO hazardous material
3) Environmental protection and high brightness
4) Soft and uniform light , good for eyes
5) Instant lighting when switch is on , no flicker , no dark side
6) Without infrared, ultraviolet and no heating effect.
7) Ultra-thin & ultra light with fine circuit design.
Single dead LED won't affect overall lighting effect and lifespan.
8) Side lighting is homogeneous & soft and comfortable&bright.It can alleviate eyes'
with wider lighting angle.
9) Concise , vogue , pretty , elegant performance
10) Fast&convenient installation.
11) The constant-current drive can still guarantee the normal operation of panel lamp during unstable voltage.
12) CE RoHS FCC TUV approved
13) New Wifi dimmable , Android or iOS
Production view :
Package :
Applications :
1. Office Lighting
2. Commercial lighting
3. Warehouse lighting
4. Home lighting
5. Hotel Lighting
5. School lighting
