High Brightness 18W LED Ceiling Panel Light 300 × 300 mm For Office Lighting

High Brightness 18W LED Ceiling Panel Light 300 × 300 mm For Office Lighting
High Brightness 18W LED Ceiling Panel Light 300 × 300 mm For Office Lighting High Brightness 18W LED Ceiling Panel Light 300 × 300 mm For Office Lighting

Large Image :  High Brightness 18W LED Ceiling Panel Light 300 × 300 mm For Office Lighting

Product Details:
Place of Origin: Shenzhen , China
Brand Name: DAYTON
Certification: CE RoHS TUV
Model Number: DT-M3030A-18W
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Packaging Details: 312*312*68mm 4pcs/7.8kg
Delivery Time: 8-10 days after order confirmed
Payment Terms: Western Union T/T PAYPAL
Supply Ability: 5000pcs/month
Detailed Product Description
Frame Color: Silvery , White , Golden LED Chip: Epistar 3014/2835
Power: 18W Size: 300*300*12mm
Beam Angle: 155° CCT: 2800-7500K
High Light:

Square LED Panel Light

,

led recessed panel lights

High Brightness 18W LED Ceiling Panel Light 300 × 300 mm For Office Lighting



Quick Detail:

1) Voltage : AC85-265V

2) Power:18W

3) Size : 300*300*12mm

4) Work Frequency:50-60Hz

5) Lumen flux: 1300±50lm

6) CCT:2700K-3300K 4000K-4500K 5500K-7000K

7) Beam angle : 155°

8) Certificate : CE , RoHS , TUV , UL

9) CRI: ≥75

10) Lifespan : 50000hrs

11) Warranty : 3 years

12) Main material : Aluminum+PMMA

13) Power Factor:  ≥ 0.95





Description:



1. Ultra-thin profile with 12mm

2. Diffused lens gives an evenly illuminated appearance

3. Professional thermal design, its life span up to 50,000hours

4. Special processing for surface aluminum frame with rounded corner, make sure safety

5. High brightness, the maximum light output can reach 85lm/w

6. Low maintenance & Easy installation

7. Elegant and superior appearance

8. Contains no lead, glass or mercury -RoHS compliant

9. Working temperature:-20℃-40℃ ,IP44

10. Triac dimmable , 0-10V dimmable , DALI dimmable

11. 3 years warranty





Technical Specifications:



Housing Material:    aluminum 6063 +PMMA

Dimension:  Φ300mm*300mm*11mm

Power Supply:         18 W

CRI:    > 75Ra (white warm white)

LED Quantity:        100 pcs (3014 SMD LED)

Power Factor:  ≥ 0.96

Efficacy:                  110LM/W

 Color Temperature:  2800K-7000K, or customized

Input Voltage:          AC85-265V

Environment Temperature:  -20 ℃~ +40℃

Life Span:                50000hours

Net Weight :    1300g/pcs

Work Frequency:     50-60Hz

Gross Weight /Size:  308*308*15mm    1330g/pcs

Installation:             embedded ceiling

carton/Weight(pcs/kg): 312*312*68mm  4pcs/7.8kg

Beam angle:             155°

Certification: CE, RoHs

Luminous Flux:       730-850 LM

warranty: 3 years





Competitive Advantage:



1) Leading power source design and long lifespan.

2) NO hazardous material

3) Environmental protection and high brightness

4) Soft and uniform light , good for eyes

5) Instant lighting when switch is on , no flicker , no dark side

6) Without infrared, ultraviolet and no heating effect.

7) Ultra-thin & ultra light with fine circuit design.

Single dead LED won't affect overall lighting effect and lifespan.

8) Side lighting is homogeneous & soft and comfortable&bright.It can alleviate eyes' fatigue with wider

lighting angle.

9) Concise , vogue , pretty , elegant performance

10) Fast&convenient installation.

11) The constant-current drive can still guarantee the normal operation of panel lamp during unstable voltage.

12) CE RoHS FCC TUV approved

13) New Wifi dimmable , Android or iOS



Production view :

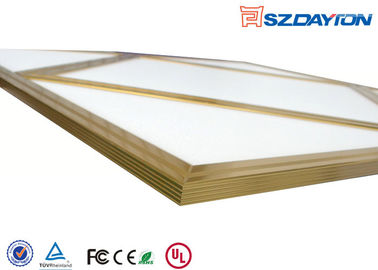

High Brightness 18W LED Ceiling Panel Light 300 × 300 mm For Office Lighting 0





Package :

High Brightness 18W LED Ceiling Panel Light 300 × 300 mm For Office Lighting 1



Applications :



1. Office Lighting

2. Commercial lighting

3. Warehouse lighting

4. Home lighting

5. Hotel Lighting

5. School lighting

High Brightness 18W LED Ceiling Panel Light 300 × 300 mm For Office Lighting 2
