Product Details:
Payment & Shipping Terms:
|
| Material: | Die Casting Aluminium | Finished Color: | Grey,black Or White Available |
|---|---|---|---|
| Glass Cover: | 5mm Tempered Glass | Reflector: | High Efficacy Shining Aluminium Reflector |
| Lampholder: | E40 | OEM: | Available |
| Voltage: | 250W Or 400W Available | Waterproof: | IP65 |
| High Light: | outdoor flood lights,exterior flood lights |
||

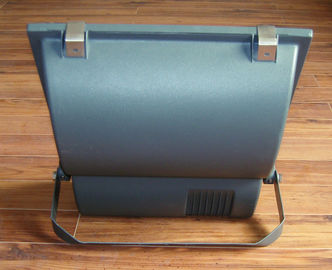

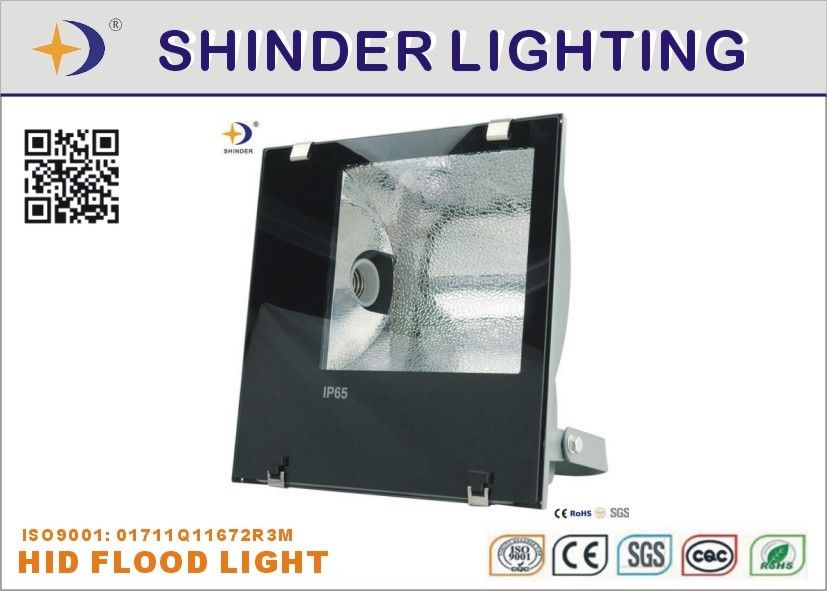

IP65 heavy duty aluminium 250w or 400w metal halide lamp housing waterproof outdoor flood light
SDFL330B is one of best popular flood light in the market
with heavy duty outdoor waterproof IP65 flood light offering 250W or 400w lamp options
in a durable aluminium housing which needs a separate gear control box to fit ballat,ignitor and capacitor to work together.
250w metal halide lamp or 400w high pressure sodium lamp with E40 base opitional
high efficacy tempered glass lens cover
EMPTY HOUSING OR COMPLETE SET WITH CONTROL GEAR & LAMP IS OPITIONAL
Features
* high pressure die casting aluminium housing with six front clips to fix the front tempered glass,waterproof IP65
* adjustable steel mounting bracket to support the whole flood light with galvanised pretreatment
* durable polyester powder coat paint finish in black or grey or dark available
* owned back compact control gear box with IP65 cable gland entry
* can stand over 40 ~ 50 degree high temperature circumstance operation
* anodised aluminium shining reflector
* supplied with quality E40 single HID lamp using
Applications
sport lighting,stadium lighting,public lighting purpose,parking area,loadinig docks and landscape,etc.
Specifications
| ITEM | HID FLOOD LIGHT |
| MODEL | SDFL330B |
| WATT. | 250W or 400W available |
| Lampholder | E40 |
| VOLT. | 220-240V/50Hz |
| WATERPROOF | IP65 |
| FRONT GLASS | tempered glass |
| MATERIAL | heavy duty die casting aluminium |
| REFLECTOR | Efficacy shining aluminium reflector |
| LIGHT BEAM | symmetrical distribution |
| EMPTY WEIGHT | 4.0kg |
| DIMENSION | 430*430*145mm |
| SUPPORT BRACKET | adjustable |
| FINISHED COLOR | durable polyester powder coating |
| CABLE GLAND | 5-10mm |
Usage
we can provide empty housing or complete with control gear and lamp,if you have own ballast and lamp,please as following:
* cut off the power firstly
* use the screws driver tools to open the cover of control gear department
* install ballast,ignitor,capacitor on the existing electric plate inside control box
* use the special too to open the front glass
* put inside high pressure sodium lamp or metal halide lamp with E40 lampholder
* confirm all safe connection,then getting through the power,light it.
if you order complete set,just get through the power cable then light it.
Packing Details:
individual packing,one pc is one master carton
packing size: 51*45*16cm/5.7kg/5.0kg/pc/ctn for SDFL330B flood light
Delivery time: 15-20 work days
Certificates: CE / Rosh / EMC / LVD / SASO / COC available
QUALITITY SYSTEM: ISO9001
OEM or Customized design is available,just give us an email or a call,please!
