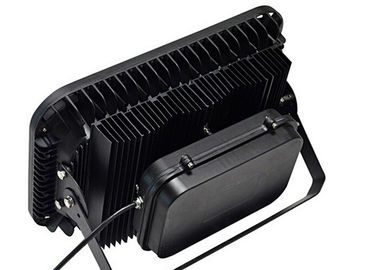

Narrow Beam Angle Outdoor LED Flood Lights 180W Sport Stadium Lamp IP66 Outdoor

Narrow Beam Angle Outdoor LED Flood Lights 180W Sport Stadium Lamp IP66 Outdoor
Narrow Beam Angle Outdoor LED Flood Lights 180W Sport Stadium Lamp IP66 Outdoor Narrow Beam Angle Outdoor LED Flood Lights 180W Sport Stadium Lamp IP66 Outdoor

Large Image :  Narrow Beam Angle Outdoor LED Flood Lights 180W Sport Stadium Lamp IP66 Outdoor

Product Details:
Place of Origin: Shenzhen,China
Brand Name: LEYOND
Certification: CE, RoHS
Model Number: LY-LY20150XX
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: 75-85 USDnegotiate
Packaging Details: 2pcs/ctn, neutral package/ Customize request available
Delivery Time: Shipped within 7-10 Working days
Payment Terms: Western Union, T/T,Paypal
Supply Ability: 5000pcs/Month
Detailed Product Description
Power Option: 150w Temperature: -40-50c
Material: Aluminum Application: Gas Station
Warranty: 5 Years Color Temperature: 2700-6500K
LED Chip: Lumileds 3030/5050 For Optional IP Grade: IP65
High Light:

outside LED flood lights

,

LED security flood light



165lm/w High efficiency Anti-Glare Gas Station Led Canopy Lights with 5 years Warranty



1. Features

1)Using LUXEON 5050 led chip to ensure high lumen and long life. Whole lamp output light efficiency >165LM/W.



2)Adoption LEYOND exclusive Lens with light transmittance up to 98%.Seals using silicone rubber, oil proof, aciduric, alkali fast, fire resistant.The unit construction of lamp adopt waterproof and dust proof design, It can meet the indoor and outdoor needs .



3)Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the

brightness and illumination uniformity.



4)There are 95°beam angle for your optional, optimized light distribution design solution.



5)High luminous efficiency, High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.



6)The whole lamp with the powder coating is brighter, without fading and corrosion.



7)Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.



8)The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.



2. Specificate



Par NO

Parameter

LY-YL20150PW LY- YL20150WW LY- YL20150NW
Inptut voltage AC100V~240V 50/60HZ
Sysem consumption(W) 150
Luminous flux(lm) 24000 21000 23200
Chip Brand LUXEON 5050/3030 /LEYOND 5050
Beam Angle 85 DEG
CRI >70
Color Temperature Warm white:5000-6500K / Neutral white:2700-3200K / Pure white:4000-4500K
LED Driver MEAN WELL ELG-150
Luminous efficiency(lm/w) >155
Lifespan(hrs) >50000
IP Rating IP66
Dimmable YES&NO
Size(mm) 383x383x61
Net Weigh(kg) 5.8
Package Size(mm) 415*415*120




3. Product Details:



Ant -Glare 100W 120W 150W Ceiling Mounted Canopy Gas Station Workingshop Lights



100W 120W 150W energy saving high bay lighting With 5 Years Warranty 0



Mounting with Handle

STEP1:
First check if the site can afford the weight of more than 1.5 times of the light. If not,please do not install.
STEP2:
Install the LED modular Light onto the wall or the lampposts:punch hole on the wall or lampposts, prepare the expansion screw ,and then fasten the LED modular Light .
STEP3:
Remove the hexagonal screws on the LED modular Light handle,then adjust the angle you need,finally fasten the LED modular Light with the screws.
STEP4:
The ex-factory of the standard components of the LED modular Light include a 3*1mm2 cable. Connect the wires correctly.
STEP5:
Switch on the power and make sure the light is on.Then the installation is done.

100W 120W 150W energy saving high bay lighting With 5 Years Warranty 1

Mounting with Pipe

STEP1:
Feed the luminaire leads through the Stem and attach Stem to luminaire by threading the stem into the threaded hub.
STEP2:
Assemble the junction box to the Stem by placing one of the conduit nut onto stem.
STEP3:
Loosen,do not remove,junction box screw and flflip junction box cover up.Place the junction box onto the stem.
STEP4:
Place the second conduit nut on to the stem from inside The junction box and tighten the nut.
STEP5:
Connect the wires correctly and make sure the good wire protection.
STEP6:
Sealed by water proof glue between fixture and pole.

100W 120W 150W energy saving high bay lighting With 5 Years Warranty 2



Surface Mounting

STEP1:
Openings one hole greater than 10-40mm through hole in the ceiling.
STEP2:
Put the fifixture on the ceiling, make four marks according to 4 mounting kits, then drill 4 holes for them.
STEP3:
Connect the wires correctly and make sure the good wire protection.
STEP4:
Get rubber plugs into the holes, match 4 mounting kits to the Rubber plugs, then fifix the fifixture on the ceiling by screws. Ensure that no wires are pinched during installation of luminaire.
STEP5:
After installation, sealed by waterproof glue between fifixture and the mounting surface.

100W 120W 150W energy saving high bay lighting With 5 Years Warranty 3



4. Distribution Curve





100W 120W 150W energy saving high bay lighting With 5 Years Warranty 4

100W 120W 150W energy saving high bay lighting With 5 Years Warranty 5



5. Operation and Storage Condition

Operation Ambient Temperature -25 to +50°C, Relative Humidity 20~90%

Input Voltage 100~240V AC, 50/60Hz

Storage Ambient Temperature -30 to +65°C, Relative Humidity 5~95%

Mounting Height : Suitable for 6~18m height


6. Application



Narrow Beam Angle Outdoor LED Flood Lights 180W Sport Stadium Lamp IP66 Outdoor 6


FQAs:

1. What`s the chip and driver does the light use?

----- Bridgelux 45mil chip and Meanwell Driver.

----- We are the Strategic Partners with Taiwan Epsitar and US Bridgelux company. And also have good relationship with MW company. We keep all material are original and qualified before our production.

2. How many years warranty are you provide?

----- We will offer 5 Years warranty,

3. What is the lighting range does the lamp can made?

----Answer: The lighting range can reached 50-100M,

4. How height does the lamp should be installated?

  ----the suitable installtion height is 6-18m.

5. What is your website? Are you manufacturer?

 ----Yes, we are professional manufacturer which special on High Power led light developing and producing from 2005. Welcome to visit our werbsite on www.leyond.com.cn. And if you have time to China. Please feel free to contact us. Your coming will be highly welcomed for us.
