Product Details:
Payment & Shipping Terms:
|
| Item Type: | LED Tube Light | Size: | 1500mm(5ft) |
|---|---|---|---|
| Power: | 22w | Light Efficiency: | 100 |
| CRI: | ≥80 | LED Chip: | SMD 2835 |
| Input Voltage: | AC100-240V | POWER FACTOR: | >0.95 |
| Material: | PC+Aluminium | Color Temperature: | 3000K/4000K/6000K |
| Beam Angle: | 120°-160° | ||
| High Light: | led light tube,energy saving tube light |
||

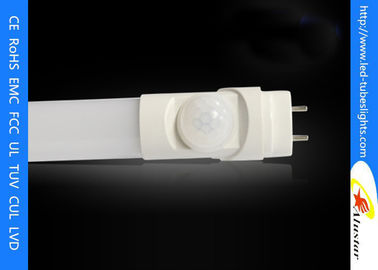

22W Motion Sensor LED T8 Tube Light 1500mm For Car Parking Lot Lighting CE ROSH SAA Listed
Quick Detail:
|
Item Type |
LED Tube Light |
Size |
1500mm/5FT |
|
Item No. |
ALS-TU/ T8A37 |
Power Factor |
>0.98 |
|
Warranty(years) |
3 years |
CRI |
≥80 |
|
Power |
22W |
Light Efficiency |
100m/W |
|
LED Chip |
SMD 2835 |
Certificate |
CE,RoHS,SAA |
Feature:
1. Energy saving: low power consumption, low heat, high level of brightness, uniform light-emitting, energy-saving about 80%.
2. Long lifespan: the normal lifespan of LED tubes is above or equal to 50.000H
3. Warranty time : 3 years(the range of colour temperature:2800K-6500K.
4. Color rendering index(CRI)is optional , for example we can make Ra>80.
5. No twinkling: rapid start, steady work, no noise, no twinkling can effectively protect the eyes,conforming to CE.
6. Using LED SMD2835 as the light source, which can ensure the brightness and long lifetime, also can reduce the light decay.
7. Green and environmentally-friendly: LED tube has no ultraviolet or infrared radiation, containing no mercury, lead and heavy metal.
8. Special circuit design: ensuring that each LED to work independently, the damage of single LED has no influence on the whole ,conforming to ROHS.
9. Wide voltage design (AC100-277V) universal applied in all countries.
10. High stability and low ripple improve the light efficiency of LED light and decrease the luminous decay;
Emergency LED Tube Parameters:
|
Model NO. |
ALS-TU/ T8A37 |
|
|---|---|---|
|
Optical Parameters |
Light Source |
SMD LED3528 |
|
Luminous Flux(lm) |
2000 |
|
|
CCT(K) |
5700K |
|
|
CRI(Ra) |
80 |
|
|
Beam Angle |
120°-160° |
|
|
Light Attenuation ratio (%) |
Less than 10% in 3 years |
|
|
LED Quantity |
320 |
|
|
Electrical Parameters |
Input Voltage(V) |
AC100-240V |
|
Frequency(Hz) |
50/60HZ |
|
|
Output Voltage(V) |
DC42-56V |
|
|
Total Power(W) |
22 |
|
|
Power Factor |
>0.9 |
|
|
Lifespan (Hrs) |
>50,000 |
|
|
Dielectric Voltage Withstand Test |
3750Vac/60s |
|
|
Structural Parameters |
Material |
Aluminum housing &PC cover |
|
Size(mm) |
Φ26×1500 |
|
|
Length(mm) |
1500 |
|
|
Net Weight(g) |
465 |
|
|
Integrated Parameters |
Operating Temperature |
-10°-40° |
|
Storage Humidity |
-40°-85° |
|
|
Safety Requirement |
/ |
|
|
Environmental Directives |
RoHS |
|
Marks: We can do the customer's demand,such as the color temperture ,power or luminous efficiency. Just tell us what you want!
The Infrared Ray T8 Tube Below:
|
Item No. |
ALS-TL01/T8A37 |
ALS-TL02/T8A37 |
|
LED Tube |
T8 tube |
T8 tube |
|
LED Chip |
SMD2835 |
SMD2835 |
|
Power |
7W |
18W |
|
Length |
600mm/2FT |
1200mm/4FT |
|
Light output |
700lm |
1800lm |
|
Body Material |
PC tube+aluminium |
PC tube+aluminium |
|
CRI |
≥80 |
≥80 |
|
Color Temp. |
3000K/4000K/5000K |
3000K/4000K/5000K |
|
Power Supply |
AC 100-277V |
AC 100-277V |
|
Working |
50/60Hz |
50/60Hz |
|
Power Factor |
>0.95 |
>0.95 |
|
Beam Angle |
160° |
160° |
|
Working Temp. |
-20~35℃ |
-20~35℃ |
|
Working Lifetime |
50,000 hours |
50,000 hours |
|
Certificate |
CE,RoHS |
CE,RoHS |
Application:
Replacemetn for conventional fluorescent tubes:
1. Hotels
2. Conference/meeting room
3. Residential/Institution Buildings
4. Schools, colleges & Universities
5. Hospitals General lighting, Commercial lighting, plant growing lighting.
6. Advertisement box.etc
FAQ (Question and answer):
Lucas: What is your production capacity and current production quantity?
Monthly production capacity is designed to be 150,000pcs of tubes, or 80,000pcs of tubes + 30,000pcs
of IP65 Tri-proof LED Lights + 20,000pcs of Panels. Current production quantity is 50,000~60,000pcs tubes.
Mark: Main Product?
We are one of the biggest LED lighting manufacturer in China focus on T5/T8/T10
led tube light, IP65 Tri‐proof LED Light, LED Panels etc.
Jane: What certifications do we have?
Available certificates: UL/TUV/PSE/REACH/CE/ROHS, VDE is supposed to be got in Mar. 20th, 2013.
DLC for American market,SAA for Australian market.
